2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

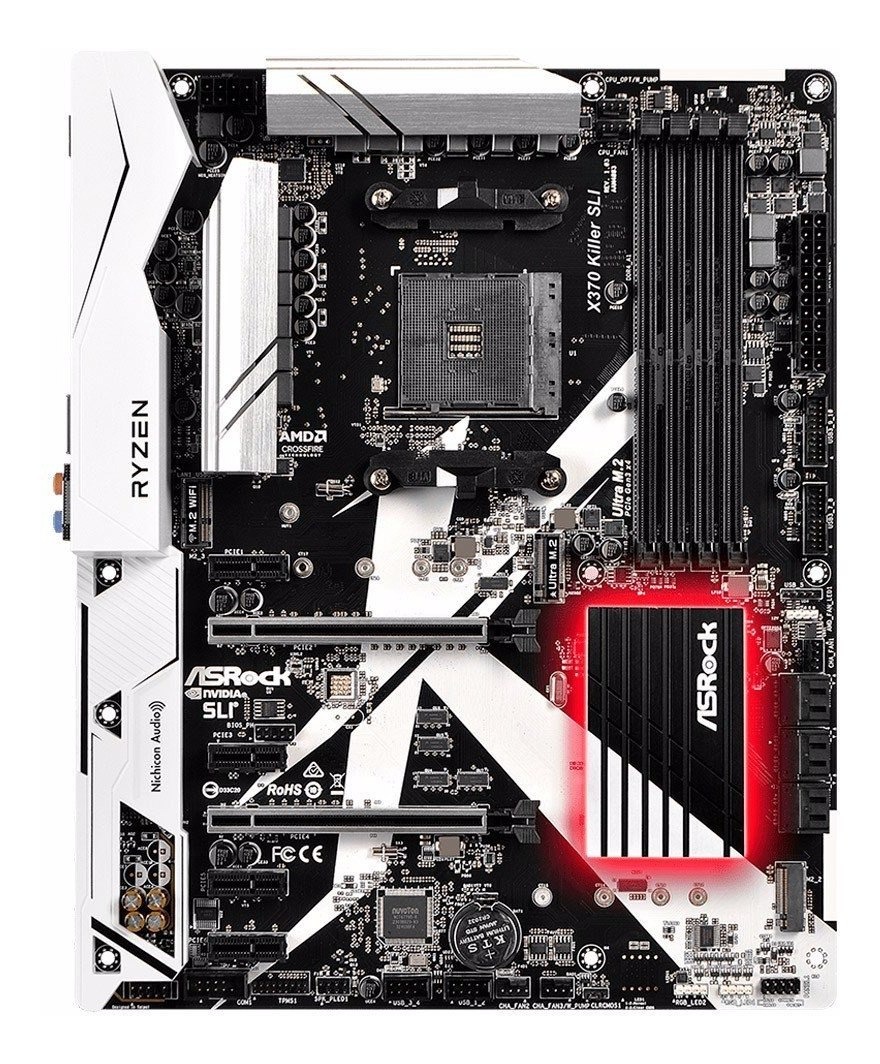

#Asrock x370 killer sli series
1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)* 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug **This feature is only supported with Ryzen Series CPUs (Summit Ridge). 15μ Gold Contact in VGA PCIe Slot (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module Supports AMD Quad CrossFireX™ and CrossFireX™** 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE2))* 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2) dual at x8 (PCIE2) / x8 (PCIE4))* Supports Energy Efficient Ethernet 802.3az Individual PCB Layers for R/L Audio Channel 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
#Asrock x370 killer sli 1080p
Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Integrated AMD Radeon™ R-Series Graphics in A-series APU*
CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment 128Mb AMI UEFI Legal BIOS with GUI support For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module labelĭR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label Please refer to below table for DDR4 UDIMM maximum frequency support. *Please refer to Memory Support List on ASRock's website for more information. AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory* Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)ĪSRock Full Spike Protection (for all USB, Audio, LAN Ports)
